Bluetooth scooter

Video First test Video Motors test button

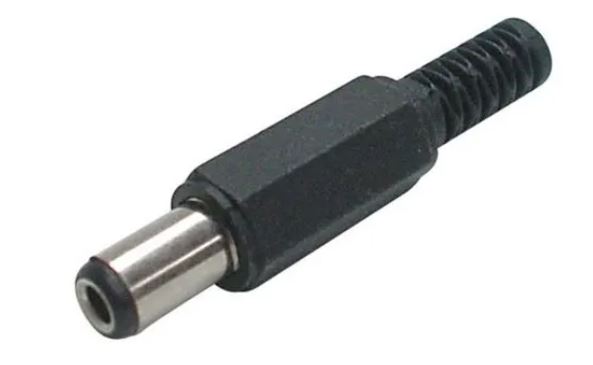

Materials: An Arduino Uno card, a quarter of a quick connection plate, an HC-05 Bluetooth module, an L298N Shield module, a 5.5 x 2.5 male plug for powering the Arduino card, a few white LEDs for the front lights, 2 pre-wired red diodes for the rear lights, a buzzer which will serve as a horn, 2 3.7 volt LI-ION rechargeable batteries and their storage box with cover, 1 small central switch, 3 resistors of 1 Kohm, 1 resistor of 220 ohms, 1 blue LED, cables and jumpers for connections, an Android Smartphone with the Bluetooth system (or a Joystick Shield card with a second HC-05 Bluetooth module).

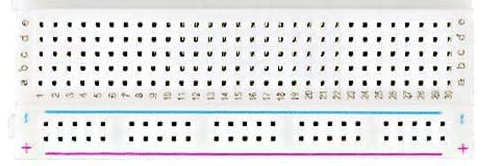

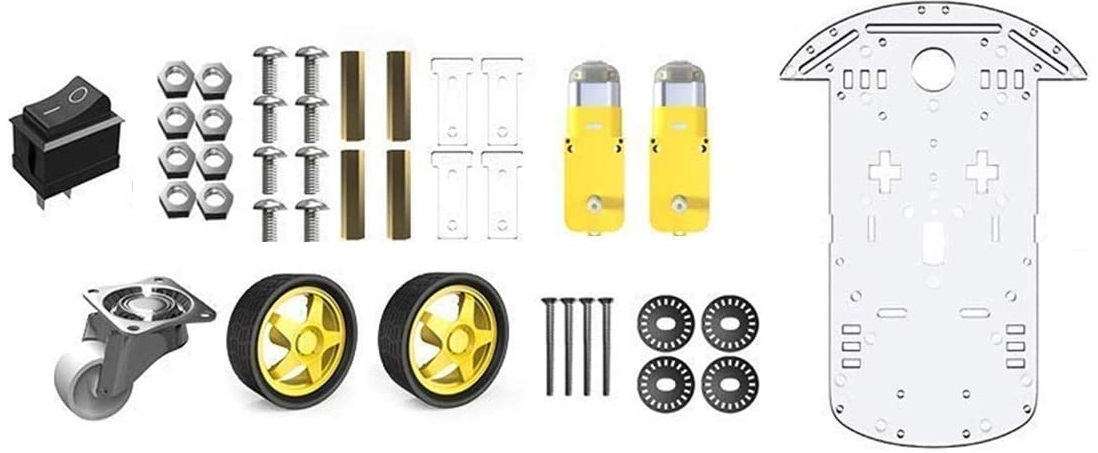

Spare parts before assembling the “tricycle” - Note that we are only using half of the half-connection plate, i.e. a quarter of the plate.

(Tip: Carefully saw this plate in half with a fine hacksaw so as not to damage the embedded metal connectors.)

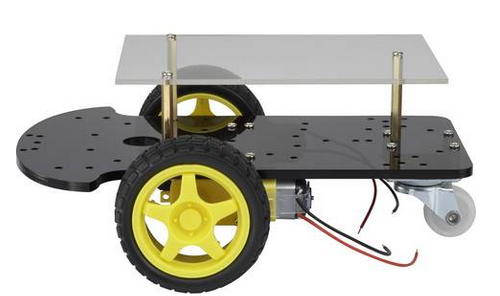

Scooter chassis assembled with their two engines

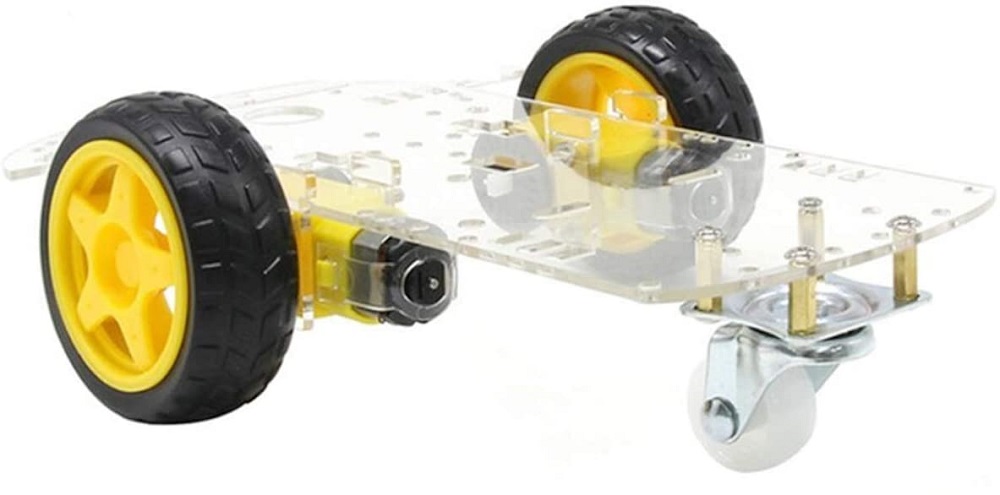

These two models are easily found in specialized online stores, the model on the left is more solid and the motors are pre-wired

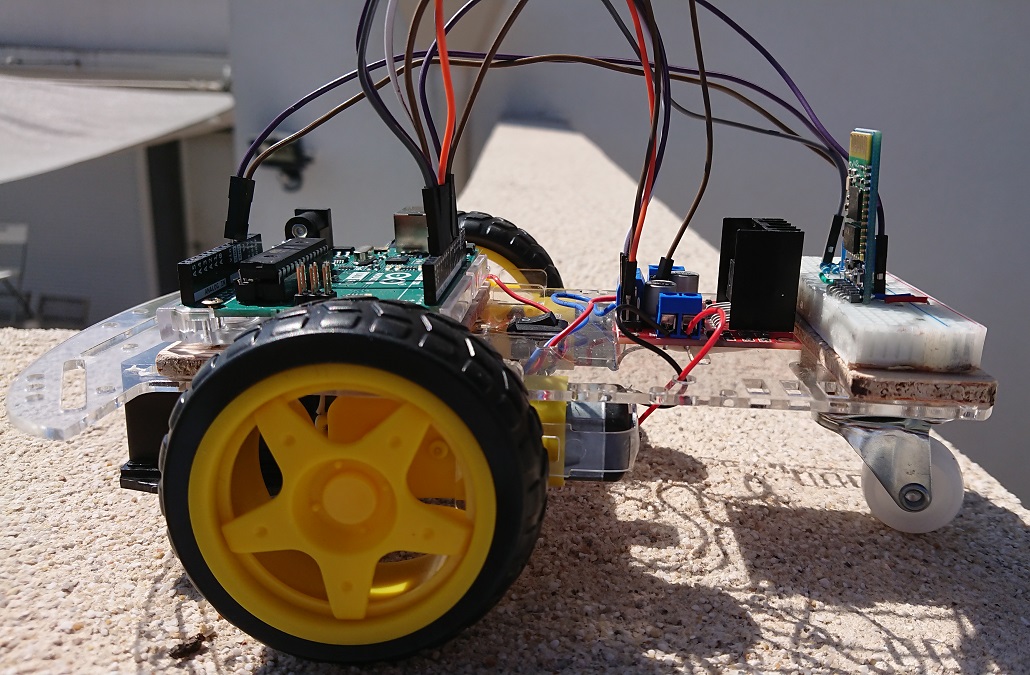

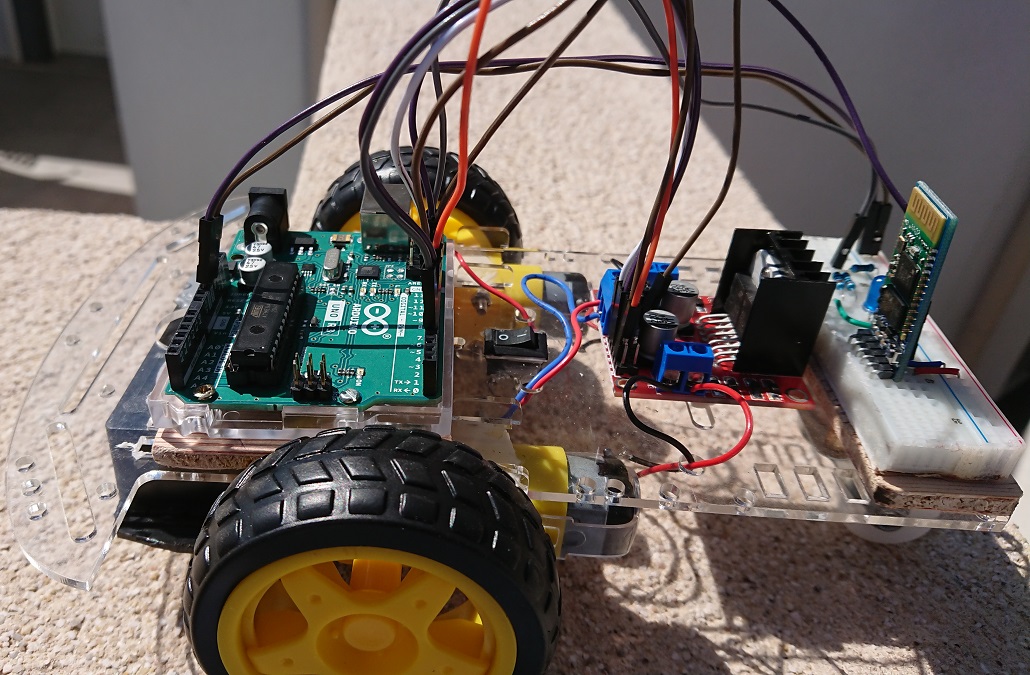

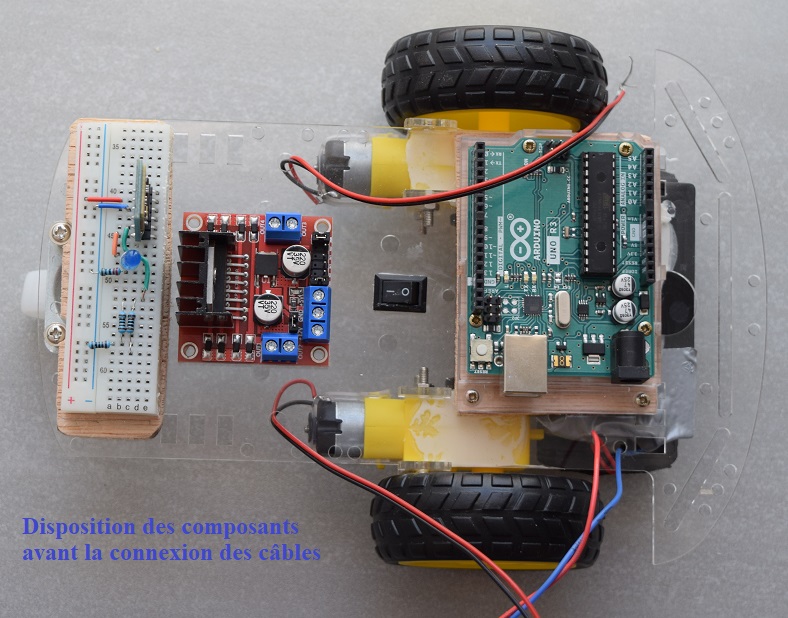

Components installed on the chassis: from left to right > Quarter breadboard with HC-05 Bluetooth module, L298N module, main switch, Arduino Uno card

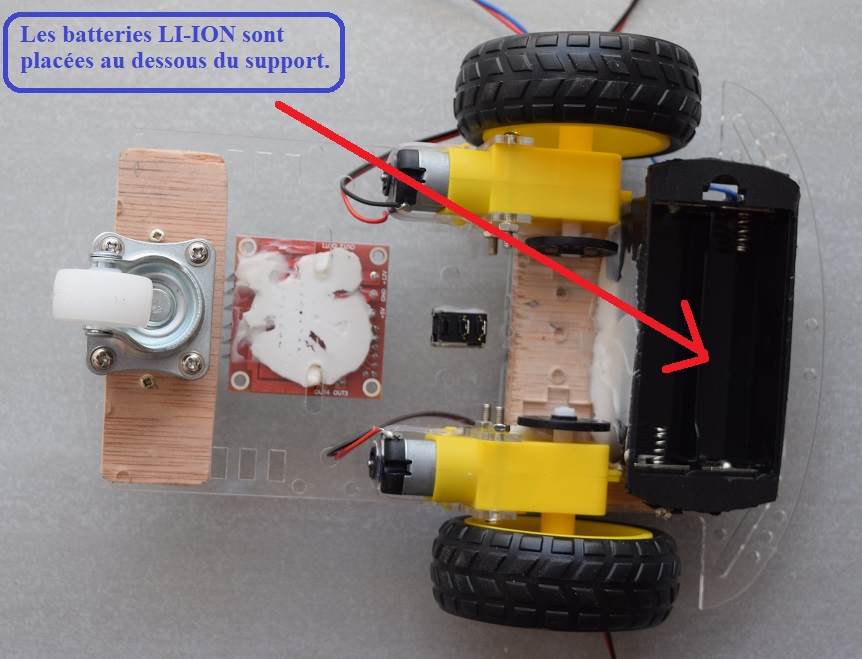

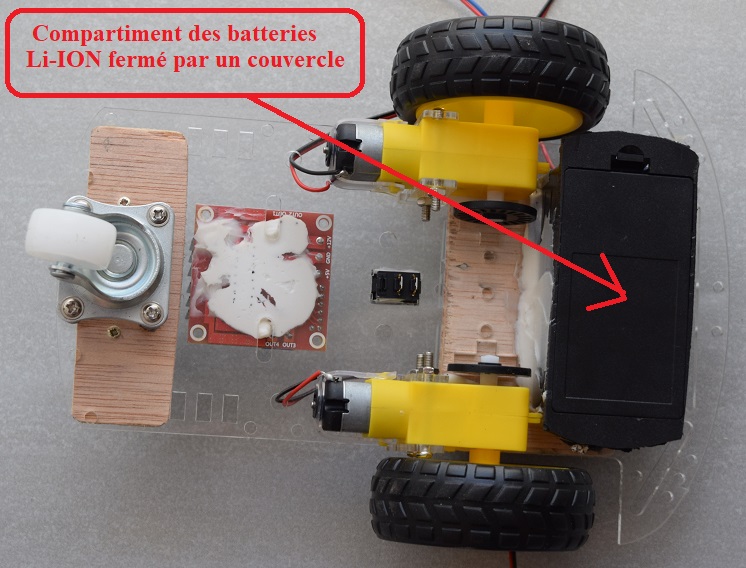

View of the scooter upside down with the Li-ION battery storage box placed below the support

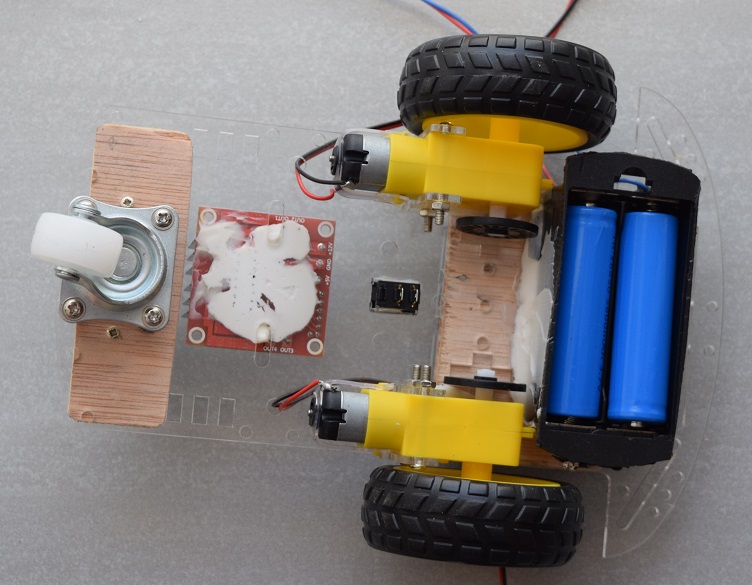

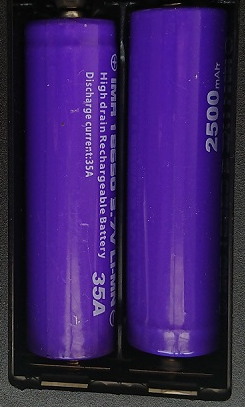

Batteries installed before closing the lid

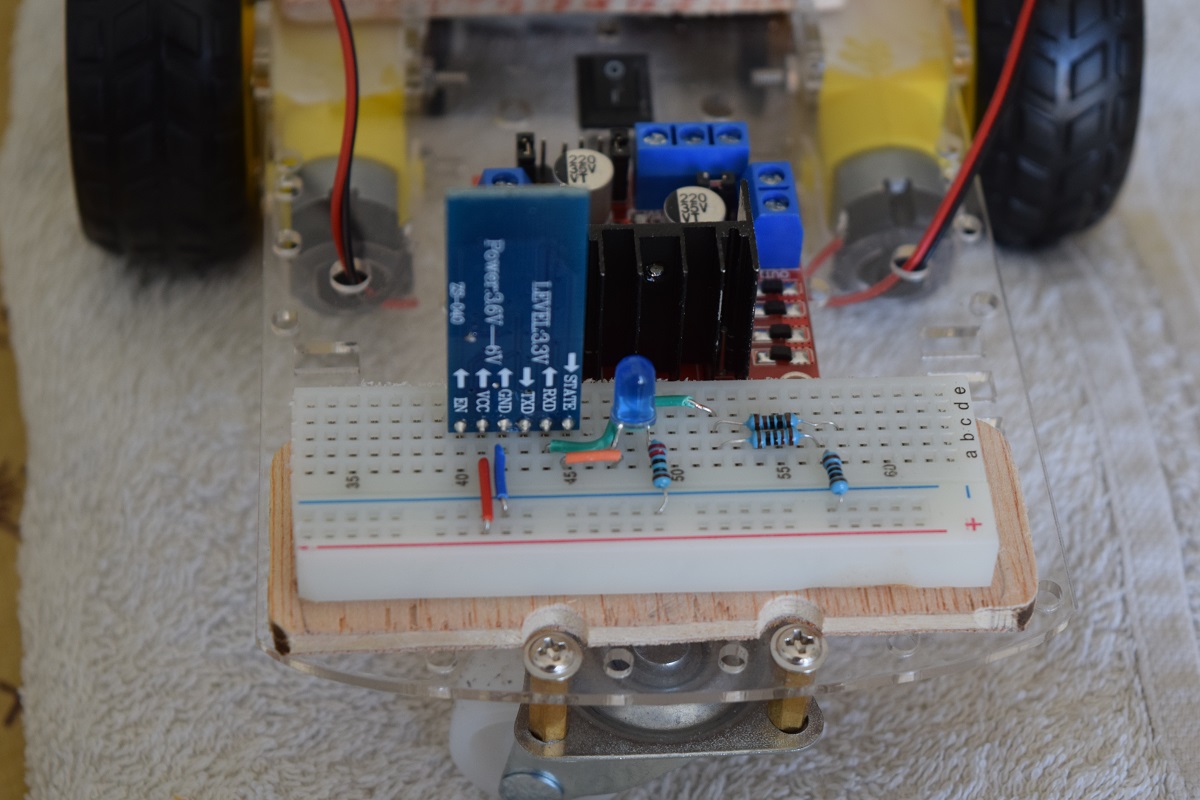

HC-05 Bluetooth module plugged into a quarter of a breadboard at the back

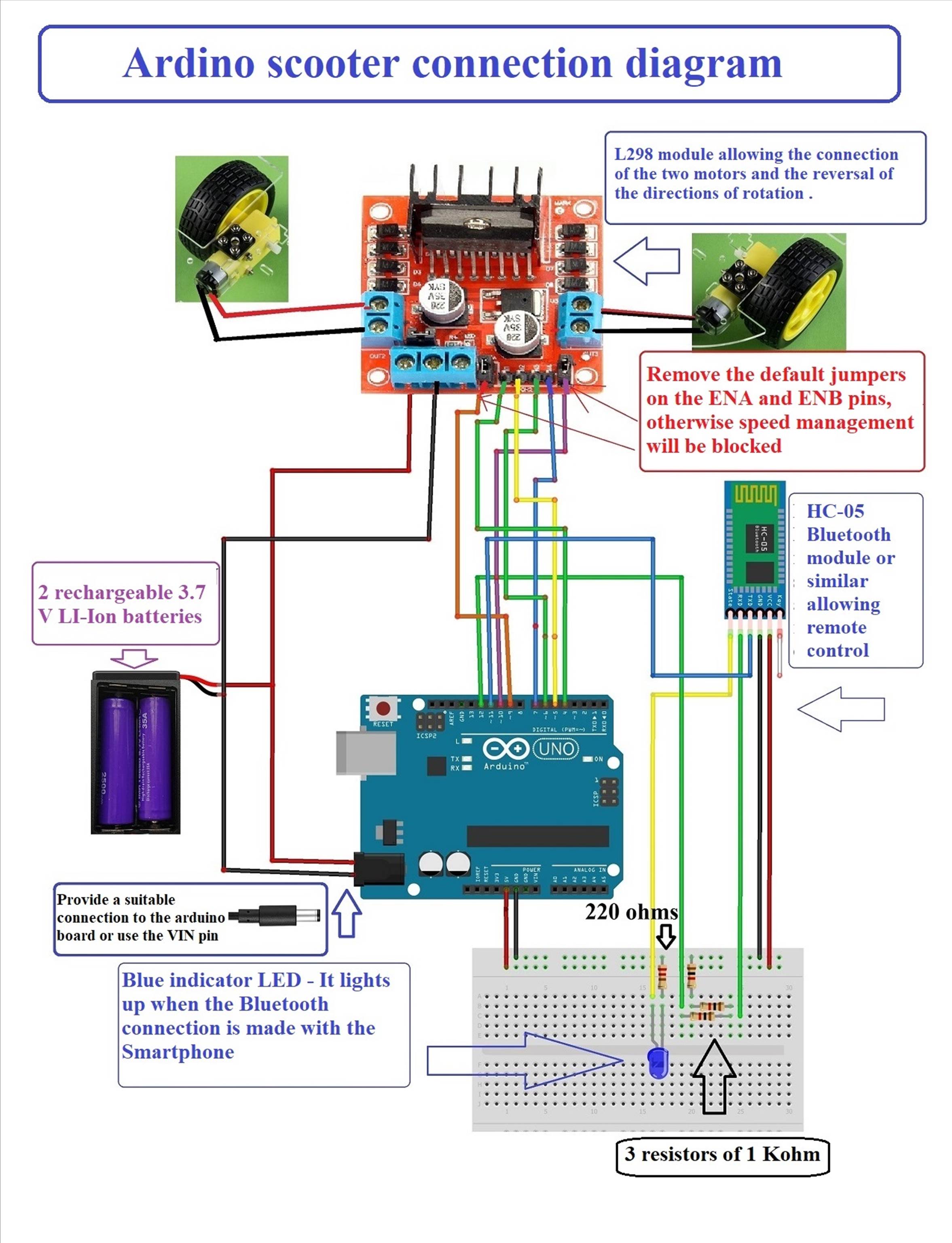

Connecting motors, modules and the Arduino Uno board

A small, easily accessible central switch allows you to turn on the scooter

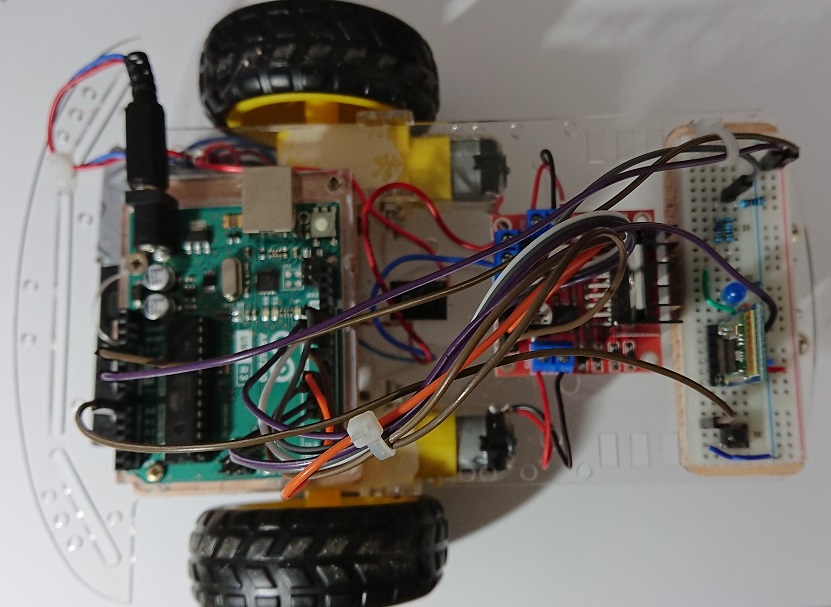

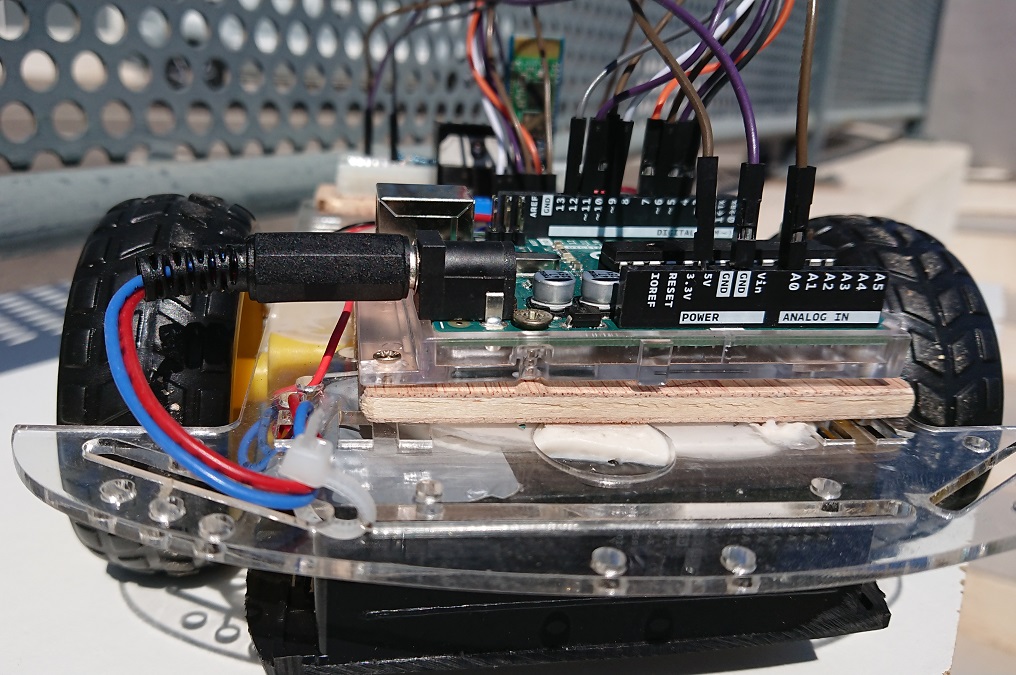

Close-up of the connections of the Arduino Uno board placed on the front of the scooter

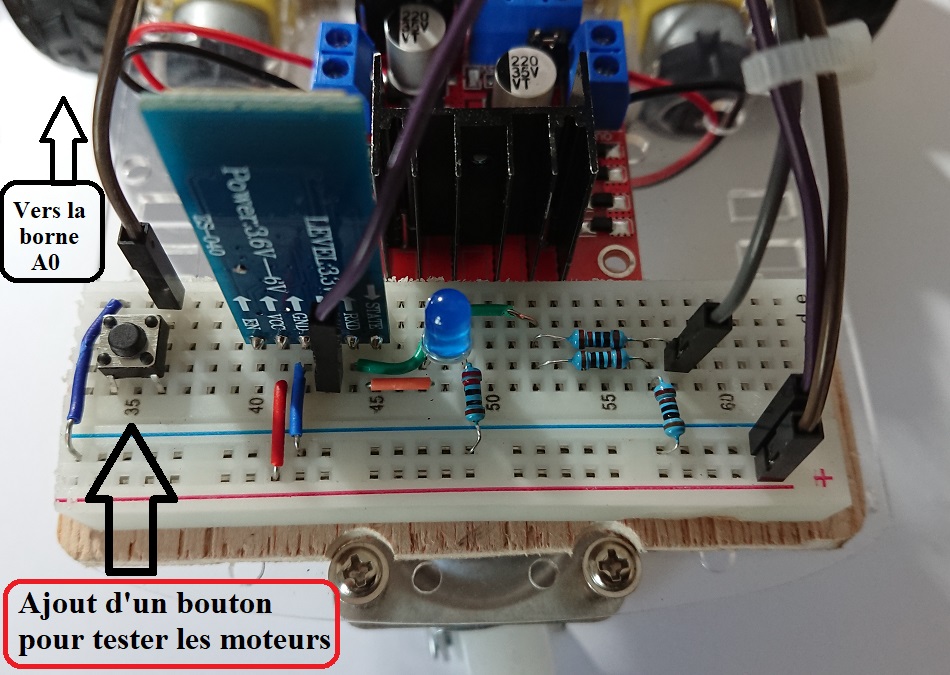

Addition of a “Motor operation test” button on the mini-connection plate

(Pressing this push button triggers the operating test of the 2 motors: 3 seconds in forward then 3 seconds in reverse, even if the vehicle is not connected via Bluetooth)

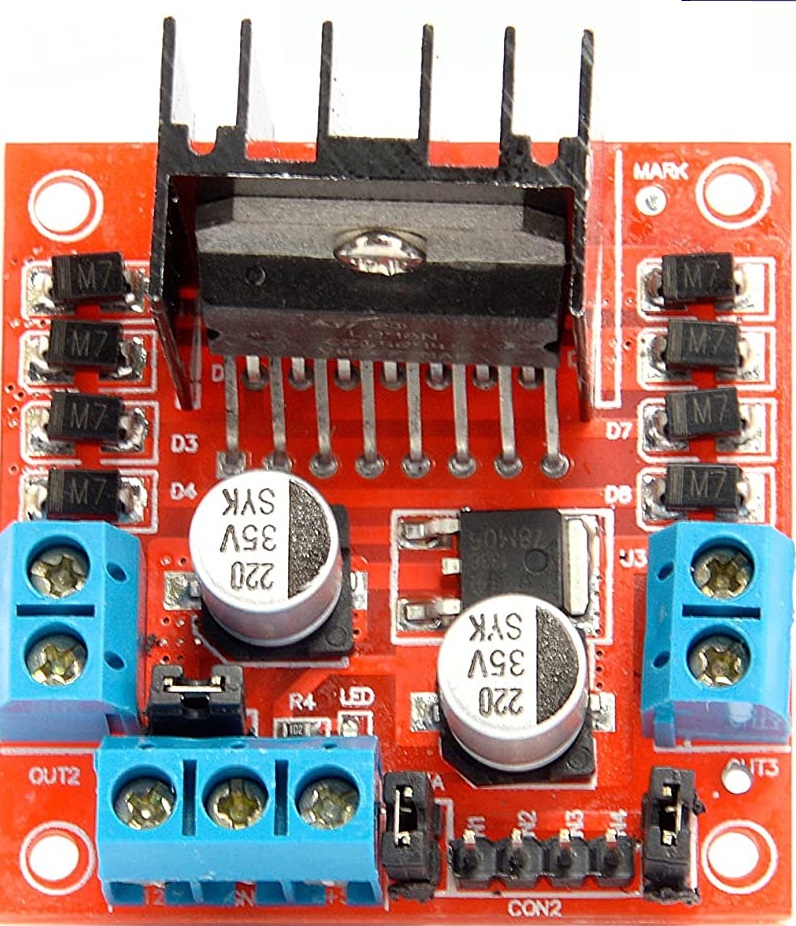

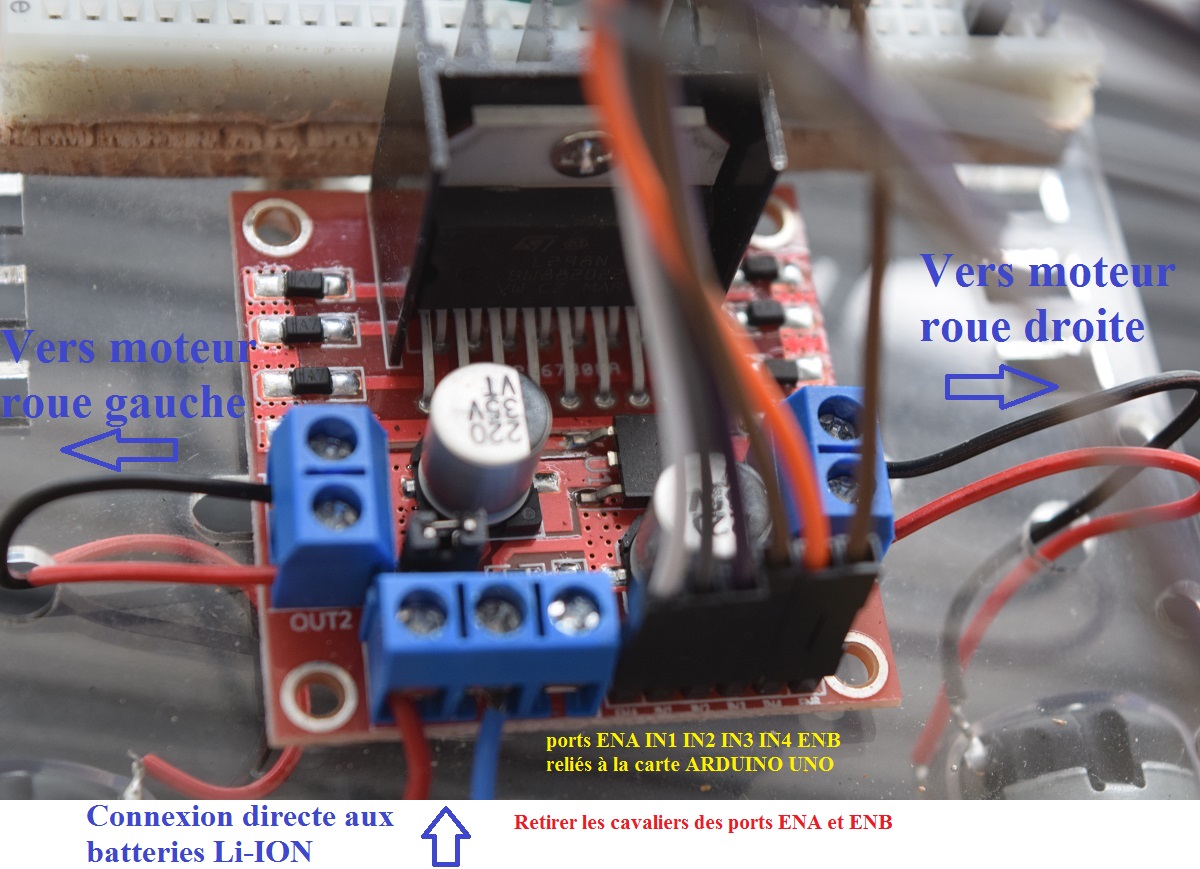

L298N module connections

Please note that the jumpers installed by default on the ENA and ENB ports must be removed from the L298N module in order to allow speed variations of the two motors.

If you leave these jumpers in place, the motors will always run at the same speed and steering will be reduced to forward and reverse at a constant speed.

Note: If after complete assembly and connections made, you notice system malfunctions, particularly during motor tests, do not panic. If one or both wheels move backwards instead of forwards, reverse the + and - connections to the OUT1 (and/or OUT2) outputs of the motor power supply. If the scooter turns left instead of turning right and vice versa, simply swap the connection of the cables coming from the L298N module (ENA and ENB pins) to terminals 9 and 10 of the ARDUINO UNO board. Everything should be fine...

---
